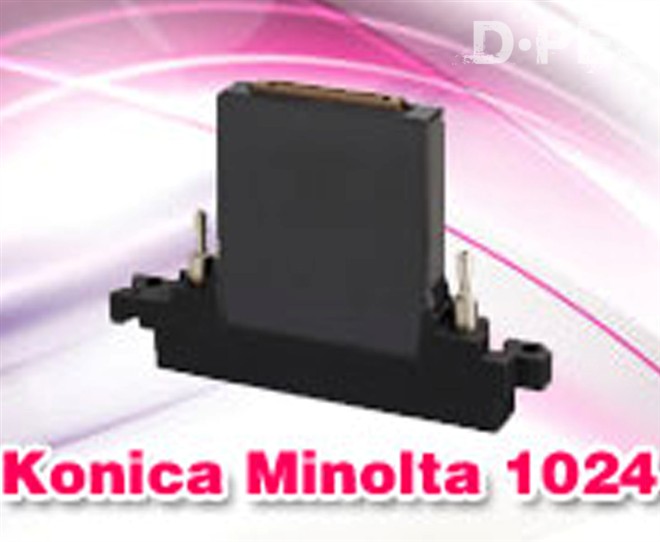

Product Name:Konica Minolta 1024/42pl printhead

Product Details:
Model:
KM 1024
Select Payment and Shipping Terms:
Min. Order Quantity:
2 Piece/Pieces
Place of Origin:
Min. Order:
FOB Price:
0.00-0.00 /
Shipping Terms:
Shippment Port:
GUANGZHOU
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
200 Piece/Pieces
Delivery Time:
Packaging:
Carton packing

Detailed Product Description:

Konica Minolta 1024/42pl printhead:



Industrial Inkjet Print Head best-suited for Versatile Applications



Shear mode, Piezo On-Demand Print Head

Piezo on-demand inkjet ejects ink drops utilizing deformation of small ink chambers composed of piezoelectric material, by applying electric field in accordance with signals. The principle of shear mode piezo actuation with shared wall structure allows lower power consumption as well as a high-density nozzle array.



512 Nozzle with 360 dpi Spacing

High resolution, 360 nozzle per inch spacing has enabled arranging 512 Nozzle on a comactly designed print head. The KM512 series consists of type L, M and S, corresponding to unit drop volume capabilities of 42pl, 14pl and 4pl respectively. The type M and S can be driven in 4 level grey-scale mode for reproducing high quality images with smoother tones.



Compatible with Solvent, UV, Oil ...

Due to its specially designed internal structure, the KM512 series boasts a wide range of ink compatibility, including aggressive solvent inks typically used for super-wide format printers. Inks which have high viscosity at room temperature,such as UV ink, can be heated up to 55 degrees Celsius with the H type's internal heater.



Enabling Comapct Design of Head Mount System

This series is specially designed to have a “wing” structure so that users can precisely align the print heads without difficulty. This feature allows easy combination of page-width printhead units for the purpose of single-pass high-speed printing. The same external design allows interchangability of different type heads on the same mount system.

km1024_01 (2).jpg

Specification:

Printhead Name KM1024MNB KM1024MHB
Technology Piezo Drop on Demand(Shared wall 3 cycle)
Resolution 180dpi×2lines=360dpi
Number of Nozzles 512nozzles×2lines=1024nozzles
Nozzle Pitch 70.5μm(141μm 2lines)
Drop Size 14pl
Max Frequency 12.8kHz
Printing Width 72mm
Dimensions W131mm × D18mm × H89mm
Weight 140g
Grey scale 8 levels
Iternal Heater   Available
Solvent Ink OK
UV Ink   OK
Oil Ink OK
